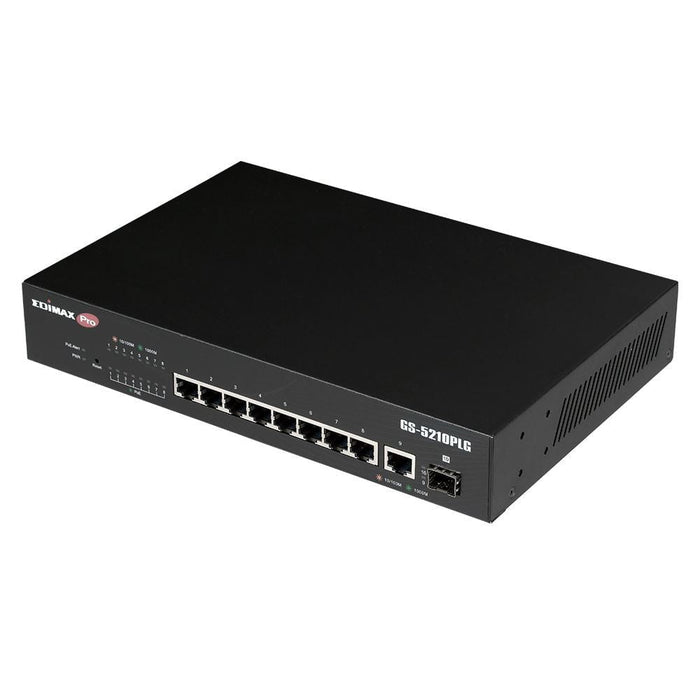

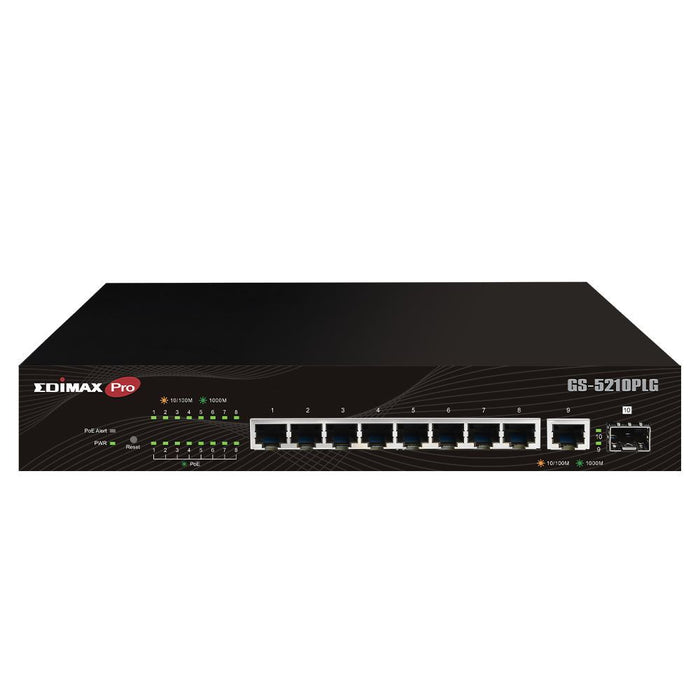

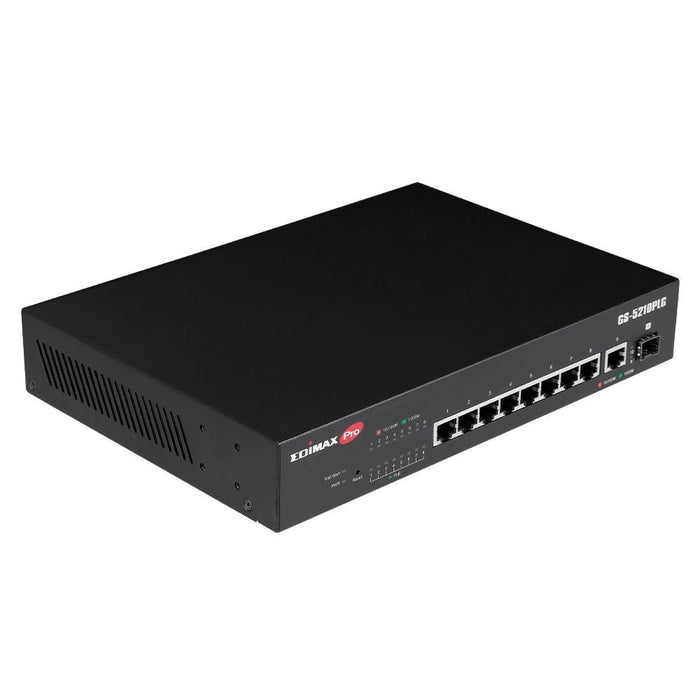

EDIMAX 10-Port Gigabit PoE+ Web Smart Switch with 1x SFP Port. Supports PoE+ up to 30W. Long Range PoE up to 200m. Powered Device Auto Detection. Supports 20Gbps Switching Capacity. Rack Mount

EDIMAX 10-Port Gigabit PoE+ Web Smart Switch with 1x SFP Port. Supports PoE+ up to 30W. Long Range PoE up to 200m. Powered Device Auto Detection. Supports 20Gbps Switching Capacity. Rack Mount

The EDIMAX Pro GS-5210PLG is a web-smart switch with 8 Gigabit PoE+, 1 RJ45 Gigabit uplink port and 1 Gigabit SFP uplink port. Designed for medium to small network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The EDIMAX GS-5210PLG is a superb choice to boost your network environment’s performance and efficiency.

Tailored for IP cameras and far away network device applications, the EDIAMX-specific long-range mode enables power and data transmission to 200 meters at a guaranteed speed of 10Mbps. The PoE also features auto-detection and power-back feed protection to efficiently provide power and avoid damaging the PoE ports at the same time. With smart features such as QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, the EDIMAX Pro GS-5210PLG Web Smart Switch provides a cost-effective, reliable, scalable and secure switch solution for SMB networks.

FEATURES

• 8 Gigabit Ethernet PoE+ ports, 1 RJ45 Gigabit uplink port and 1 Gigabit SFP uplink port
• IEEE 802.3af/at PoE/PoE+ compliant to simplify deployment and installation
• Supports PoE+ up to 30W per port (total power budget: 100W) for powering PoE-enabled devices
• Guaranteed PoE long distance to 200 meters
• Auto-detection of powered devices (PD) and power consumption levels
• Auto fault-detection on over/under current & voltage
• Power back feed protection to avoid damaging PoE ports
• Supports 20 Gbps switching capacity, 14.88Mpps forwarding rate, 4K MAC address table and 9KB jumbo frame
• Supports QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control and more
• Rack-mount design, rack-mount kit included

 PoE Long Range Guaranteed 200 Meters

While general Ethernet switches have a distance restriction of 100 meters (328 ft.), the GS-5210PLG long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones and PoE-enabled IoT devices at remote locations. It is an effective solution for network environments where power outlets are difficult to access, saving cost and time.

Safe PoE Power Backfeed Protection

The GS-5210PLG supplies up to 30W of electricity per port and has a total PoE power supply of 100W to power any 802.3at or 802.3af compliant PoE/PoE+ device. With power-back feed protection, the GS-5210PLG can avoid damaging PoE ports by cutting out power delivery from the power source device.

Flexible RJ45 and Fiber Uplinks

Equipped with 1 RJ45 and 1 SFP fibre-optic uplinking capability, allows the switch to be flexibly deployed to an indoor short distance RJ45 port and outdoor long distance or a faraway location with an SFP port, such as branch offices, retail or remote workgroup environments for larger network connections.

Intuitive and Powerful Smart Tool

The GS-5210PLG is designed for small and medium business networks that require smart and simple network management. This web smart switch meets the network growing need by providing advanced essential features such as VLAN, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention, IGMP Snooping v1/v2/v3, QoS, Port Mirroring and more. Further optimizing the performance of business networks. Experience fast and easy operations with just a few simple clicks through the user-friendly web-based management utility, your network is ready to use.
